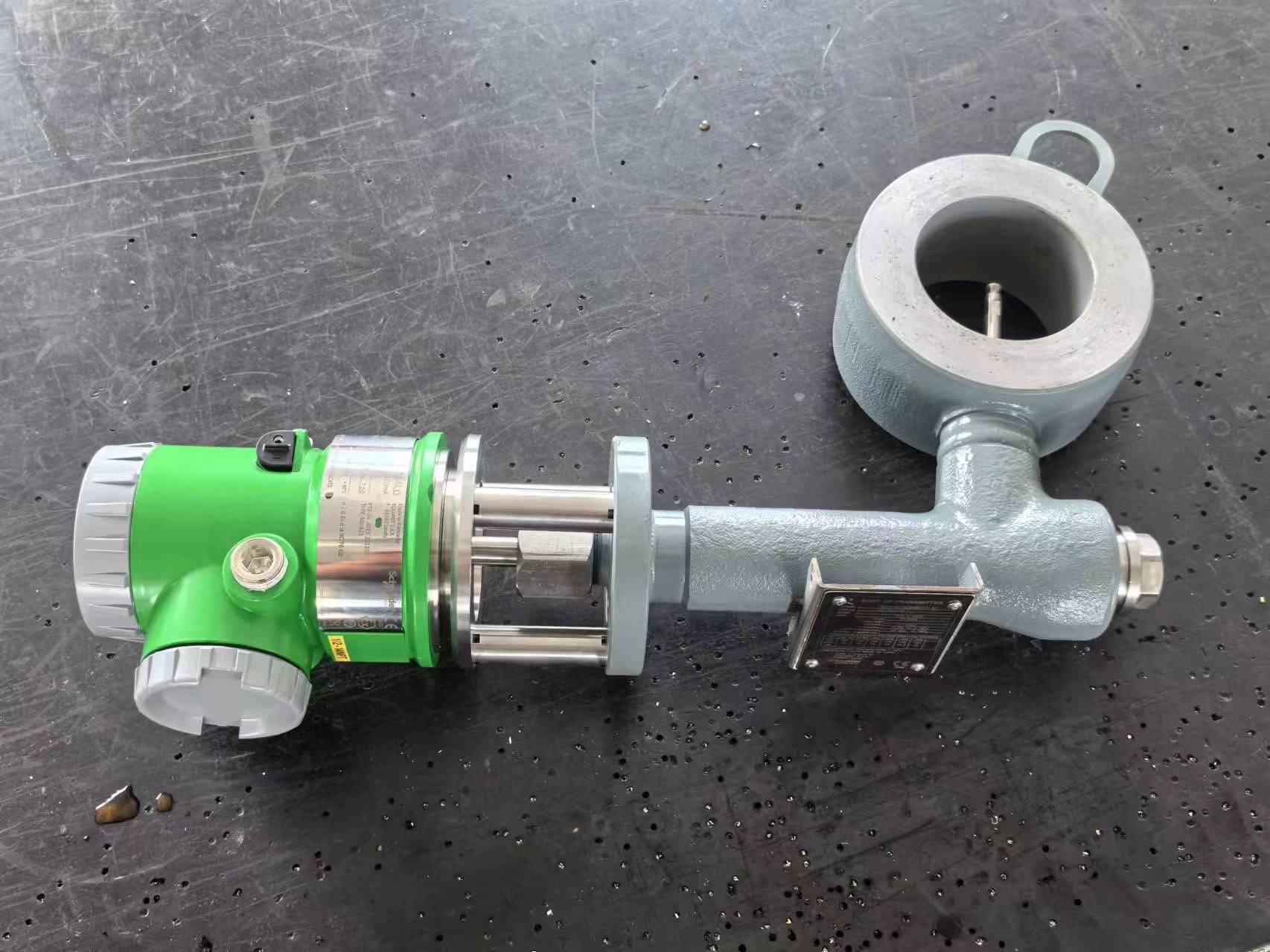

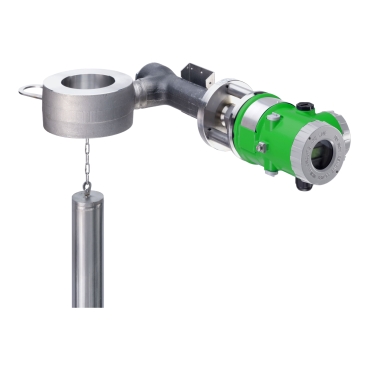

244LD/buoyancy-transmitter-level

MainRange of ProductLevelProduct or Component TypeBuoyancy transmitterProduct Specific ApplicationLiquid level measurement
Interface level measurement
Density measurement[Us] rated supply voltage12...42 V DCKit compositionTransmitter
displacer element (to be purchased seperately))

ComplementaryHousing materialAluminium
Stainless steelpressure rating14.5…7251.9 psi (1…500 bar)Safety levelSIL2Communication port protocolHART, 4...20 mA
FOUNDATION fieldbusDisplay TypeLCD displayMeasurement accuracy+/- 0.2 % of readingMeasurement range0...10 m
0...30 ftType of measurementLevel inferred by buoyant forceConnector typeDIN flange
ASME flange
JIS flange

EnvironmentAmbient air temperature for operation-321…932 °F (-196…500 °C)Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)Product certificationsCE
ATEX
FM
CSA
EAC
NEPSI
INMETRO
PEDStandardsEN/IEC 61508
NACEIP Degree of ProtectionIP66
